4 settembre 2026New – GM620

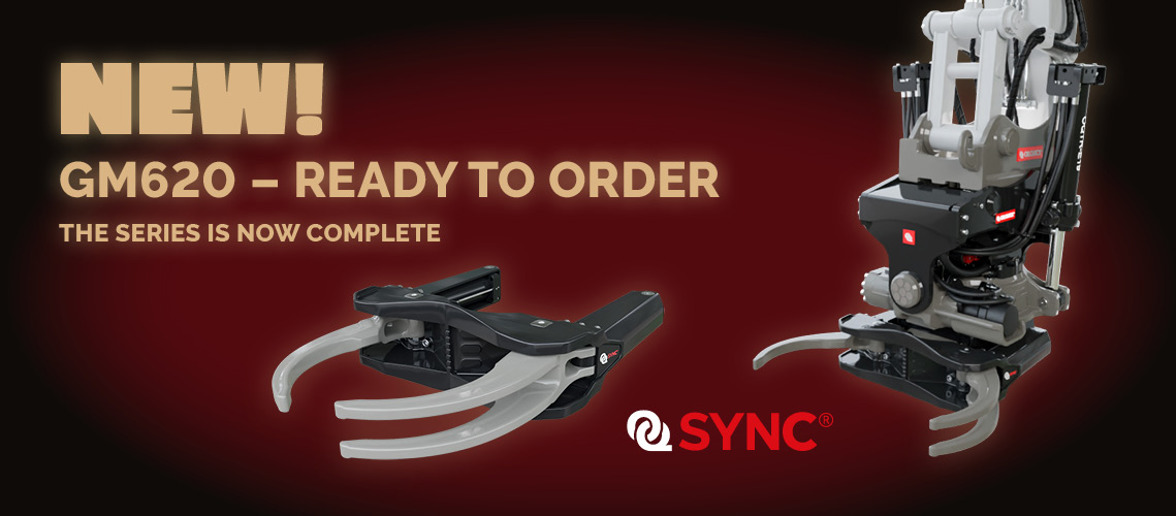

OilQuick’s new, smaller GM620 grapple module is now available to order.
The GM620 is designed for OilQuick’s OQ45 quick coupler and is compatible with the E09 and E14 tiltrotators.

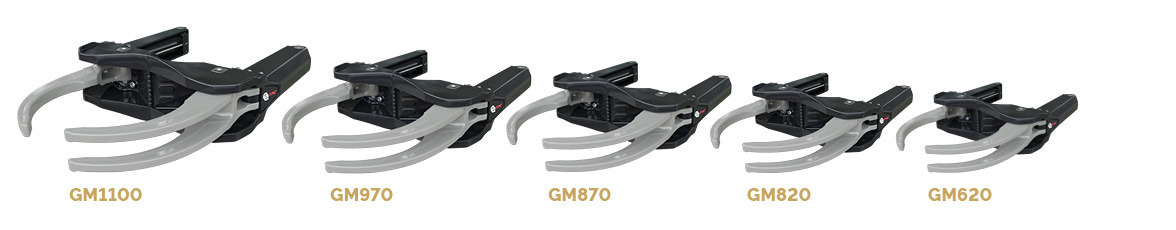

With the launch of the GM620, OilQuick’s grapple module range is now complete. Gripper modules are now available to order for all OilQuick tiltrotators.
Johan Lindqvist, Sales Manager at OilQuick AB:
What the industry has been waiting for is finally here! After months of rigorous field testing with select customers, the verdict is unanimous: the new OilQuick grapple is the ultimate game-changer. All test pilots are extremely exited with all of the new features.
This groundbreaking grapple is now available for order and is set to revolutionize the market.
What makes it exceptional? The secret lies in the OQ Sync technology.
A traditional system depends on the load and speed of the grapple jaws. If one jaw encounters resistance, the other jaw wants to move at a higher speed, causing them to become out of phase in the gripping motion.
With OQ Sync, automatic equalization of the jaws occurs every time the grapple jaws are fully closed. This completely eliminates the risk of the jaws becoming out of sync, for example, in case of uneven loading or when slow closing the jaws. OQ Sync ensures that the grapple jaws always meet tip-to-tip and that all lifts occur centered in the grapple.
Key features:
• 100% synchronized gripper claws at all positions and operating speeds.
• Grip larger objects with extended reach and depth.
• Centered grip on small objects down to Ø 9 mm.
• 1,500 kg lifting capacity.
• 8.9 kN tip-to-tip gripping force.
• Made from high strength cast steel.
• Beveled edges on the grapple claws to protect delicate objects.
• Protected brackets and tips.
MEASUREMENTS | GM620 | GM820 | GM870 | GM970 | GM1100 |
A | 620 | 820 mm | 870 mm | 970 mm | 1100 mm |
B | 343 | 407 mm | 385 mm | 510 mm | 510 mm |
C | 604 | 737 mm | 831 mm | 870 mm | 1022 mm |
Min. grip Ø | 9 mm | 11 mm | 11 mm | 12 mm | 80 mm |
Weight | 79 kg | 119 kg | 125 kg | 187 kg | 200 kg |
Gripping force tip-tip | 8,9 kN | 13 kN | 14 kN | 20 kN | 21 kN |
Gripping force max. open | 6,5 kN | 7.1 kN | 7.5 kN | 11 kN | 11 kN |
Max. lifting capacity | 1500 kg | 2000 kg | 2000 kg | 2000 kg | 2000 kg |
Max. hydraulic pressure | 25 MPa | 25 MPa | 25 MPa | 25 MPa | 25 MPa |
COMPATIBILITY MATRIX
Model | OQTR-E09 | OQTR-E14 | OQTR-E19 | OQTR-E26 | OQTR-E33 |
OQ45-4 | GM620 | GM620 | – | – | – |
OQ45-5 | GM620 | GM620 | – | – | – |
OQ60-4 | – | GM820 | GM820, GR20R2 | – | – |
OQ60-5 | – | GM820 | GM820, GR20R2 | – | – |
OQ RAIL | – | – | GM870, GR20R2 | – | – |
OQ65 | – | GM870 | GM870, GR20R2 | – | – |
OQ70 | – | – | – | GM870, GM970 | GM970 |
OQ70/55 | – | – | GM1100 | GM1100 | GM1100 |
OQ80 | – | – | – | – | GM1100 |
