Automatic quick coupler system for excavators
Change between various mechanical and hydraulic attachments from inside the cab!

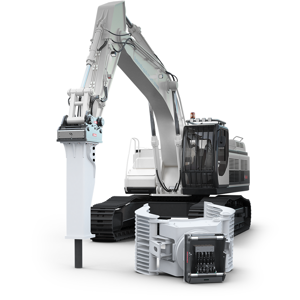

OilQuick is an automatic quick coupler system for excavators, which allows hydraulic work tools to be connected and disconnected from the drivers cab. The operator can change between various work tools within a few seconds, such as a hydraulic hammer, steel or concrete shears, sorting grapple, hydraulic magnet, compactor, sorting bucket, tilt bucket or tiltrotator.
OQ Safety Support (OQSS)
OilQuick Safety System (OQSS) is a new system for controlling your OilQuick coupler. OQSS gives operators more control and better feedback on the status of the coupler and tool, in addition to tougher hardware that will last longer.

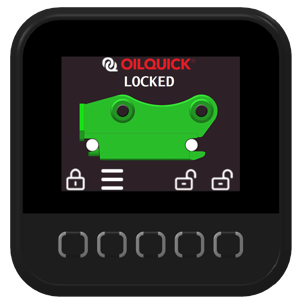

- Newly designed in-cab controller interface with integrated troubleshooting capabilities
- New coupler-mounted indicator light that’s brighter and easy to spot
- Improved lock sensor durability
- Improved lock indicator on the coupler, providing redundant feedback on coupler lock status
- Addition of lock pressure monitoring that provides redundant monitoring of proper coupler engagement
- Better Hardware: heavy duty wiring harnesses for improved durability and ease of installation
- Simplified setup procedure
- Adheres to ISO standards for quick coupler safety
The right tool always ready for the job
- Change between various work tools within a few seconds!
- Increased versatility and efficiency.
- No oil spills, saving both money and the environment.
- No messy hose couplings.
- Saves the knees and back of the operator when unnecessary jumps in and out of the cab are avoided.
- The OilQuick system makes your excavator and your company more flexible, competitive, and cost effective.
- OilQuick is an advanced quick coupler system for excavators and can be supplied in various models for machines from 1 to 120 tons.
All OilQuick attachment brackets are engineered and manufactured for precision quality fit of the bracket. OilQuick is the best system solution where quick coupler, tiltrotator, control systems and tools are fully compatible.
DOUBLE PRESSURE VALVES
-for a secure connection even if the hose breaks.READING
-for automatic tool recognition (optional)H-CYLINDER WITH QUICK COUPLINGS

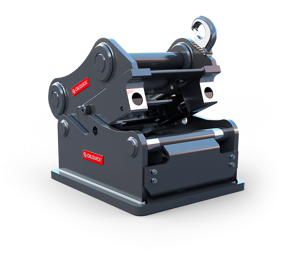

Connect hydraulic circuits with a cylinder movement and lock the quick-change mechanism.ROBUST QUICK COUPLER
- made of high-grade steel and with a good fit.DURABLE ATTACHMENT ADAPTER
- this ensures connection with no play for minimum wear and long service life.Coupler function
The OilQuick quick coupler locks the quick coupler to the attachment bracket, at the same time connecting the hydraulic hose couplings. All of this is done in one motion.
ADAPTERS FOR ALLATTACHMENTS
Small excavator or heavy equipment? Hydraulic, electric or mechanical attachment? No two machines are alike, but the OilQuick-system always works. And the result: You work more comfortable, faster and safer. No matter the equipment you will always find the correct adapter in our range.

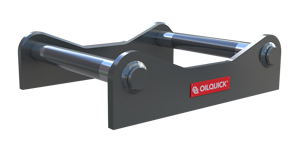

Mechanical adapter

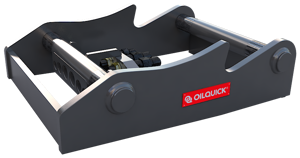

Hydraulic adapter

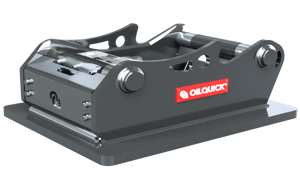

Bolted breaker adapter

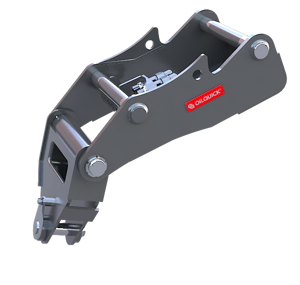

Hydraulic swivel adapter
Supplements & options
High-power connection for magnet
The OilQuick quick coupler system can also be fitted with a high-power connection, enabling a magnet for example to be attached quickly for material handling work. This high-power coupling has a capacity of up to 100 A.
Lubrication connector
A connector developed to handle lubrication of attachments in the best possible way. The unique aspect of the connector is that it has an integrated return for the grease, so that when you disconnect a tiltrotator and connect a bucket, the grease goes back to the return so that the overflow valve is not activated. An option for all sizes of coupler.
V90 electrical connector
The electrical connector is an option for the OilQuick quick coupler system. The electrical connector is available in two models. One model is mounted on the chassis for the quick coupler and is called V-90. The other is mounted on the H-cylinder and is available in two variants: 1/2” and 3/4”.
What does becoming aClean System partner mean?
Clean System is an interest group of OilQuick retail partners with a particularly high standard of safety, reliability and sustainability.
Read more about it here
BROCHURE
