OQ 70/55

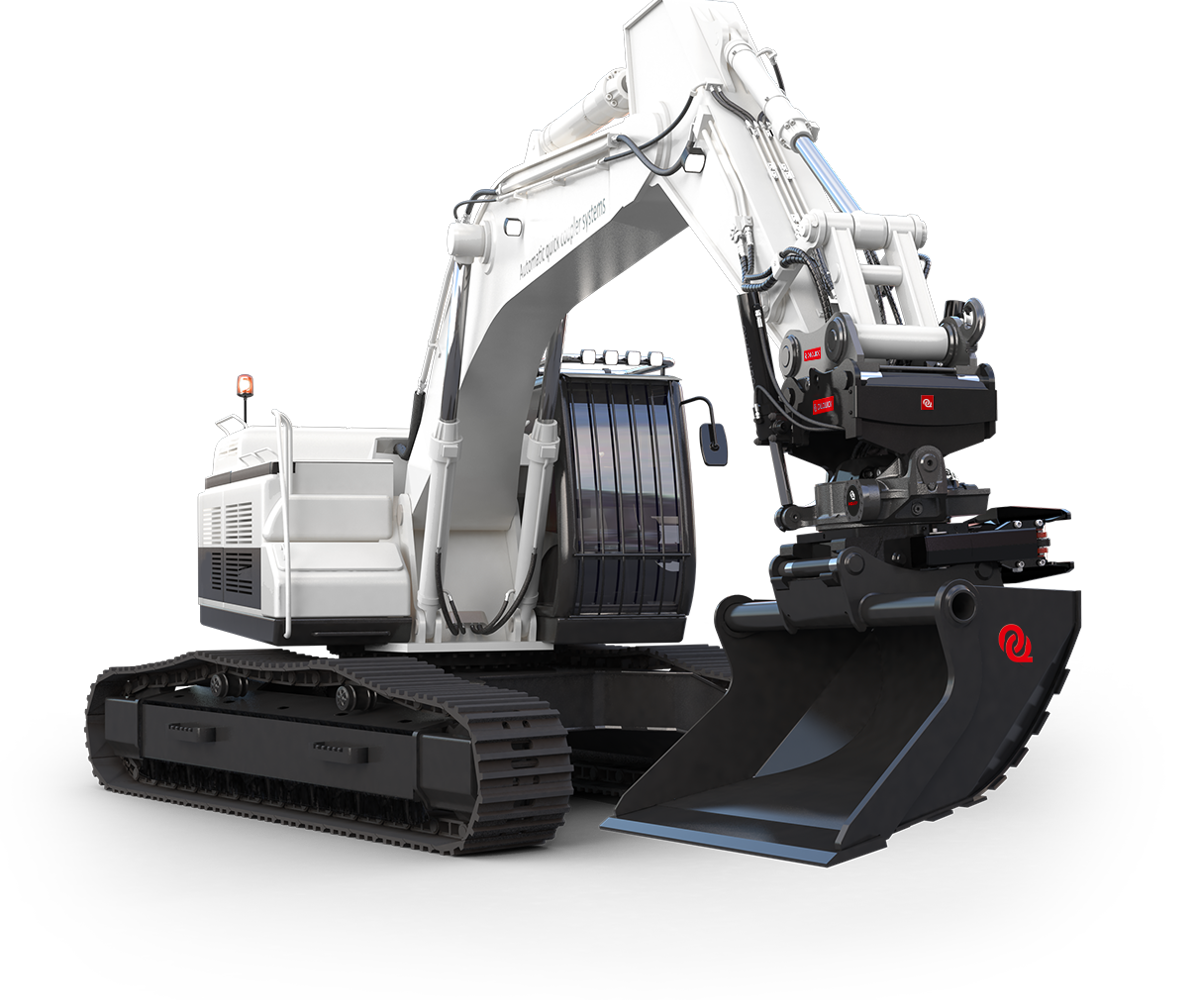

OQ 70/55 is a fully automatic quick coupler system to suit all medium sized excavators from 20-31 t.
OQ 70/55
Imperial
Metric
| Max. output torque kNm | 450 mm |
| Bucket radius | 1550 mm |
| Force at bucket edge kN | 290 mm |
| Width | 550 mm |
| Weight (approx) | 230 kg |
| Quick coupler with 2 parallel hydraulic cylinders | |
| Max. working pressure | 35 MPa |
| Load-bearing hose break valves | Yes |
| Pressure control valves | Yes |
| Leak-free quick couplers made of steel, OilQuick | |||
| Coupling sizes | 1/2" | 3/4" | 1" |
| Oil flow at 0.3 MPa pressure loss | 70 L/min | 140 L/min | 250 L/min |
| Max. continuous working pressure (MPa) | 35 MPa | 35 MPa | 35 MPa |
| No. of couplings | 2 | 2 | 2 |
| Max. output torque kNm | 1.7" |
| Bucket radius | 61" |
| Force at bucket edge kN | 11.4" |
| Width | 21.7" |
| Weight (approx) | 507 Lbs |
| Quick coupler with 2 parallel hydraulic cylinders | |
| Max. working pressure | 5,080 Psi |
| Load-bearing hose break valves | Yes |
| Pressure control valves | Yes |
| Leak-free quick couplers made of steel, OilQuick | |||
| Coupling sizes | 1/2" | 3/4" | 1" |
| Oil flow at 0.3 MPa pressure loss | 18 gal/min | 37 gal/min | 66 gal/min |
| Max. continuous working pressure (MPa) | 5,080 Psi | 5,080 Psi | 5,080 Psi |
| No. of couplings | 2 | 2 | 2 |
OQ 70/55
Imperial
Metric
| Attachment frame for mechanical tools without coupling ramp | |
| Inside width | 550 mm |
| Pin distance | 600 mm |
| Pin diameter | 70 mm |
| Weight (approx) | 90 kg |
| Attachment frame for hydraulic tools with coupling ramp | |
| Inside width | 550 mm |
| Pin distance | 600 mm |
| Pin diameter | 70 mm |
| Weight (approx) | 128 kg |
| Hydraulic tool adapter plate with coupling ramp | |
| Inside width | 550 mm |
| Pin distance | 600 mm |
| Pin diameter | 70 mm |
| Weight (approx) | 295 kg |
| Hydraulic tool special adapter with coupling ramp | |
| Inside width | 550 mm |
| Pin distance | 600 mm |
| Pin diameter | 70 mm |
| Weight (approx) | See identification plate on adapter |
| Attachment frame for mechanical tools without coupling ramp | |
| Inside width | 21.7" |
| Pin distance | 23.6" |
| Pin diameter | 2.8" |
| Weight (approx) | 200 Lbs |
| Attachment frame for hydraulic tools with coupling ramp | |
| Inside width | 21.7" |
| Pin distance | 23.6" |
| Pin diameter | 2.8" |
| Weight (approx) | 280 Lbs |
| Hydraulic tool adapter plate with coupling ramp | |
| Inside width | 21.7" |
| Pin distance | 23.6" |
| Pin diameter | 2.8" |
| Weight (approx) | 650 Lbs |
| Hydraulic tool special adapter with coupling ramp | |
| Inside width | 21.7" |
| Pin distance | 23.6" |
| Pin diameter | 2.8" |
| Weight (approx) | See identification plate on adapter |
