OQ 80

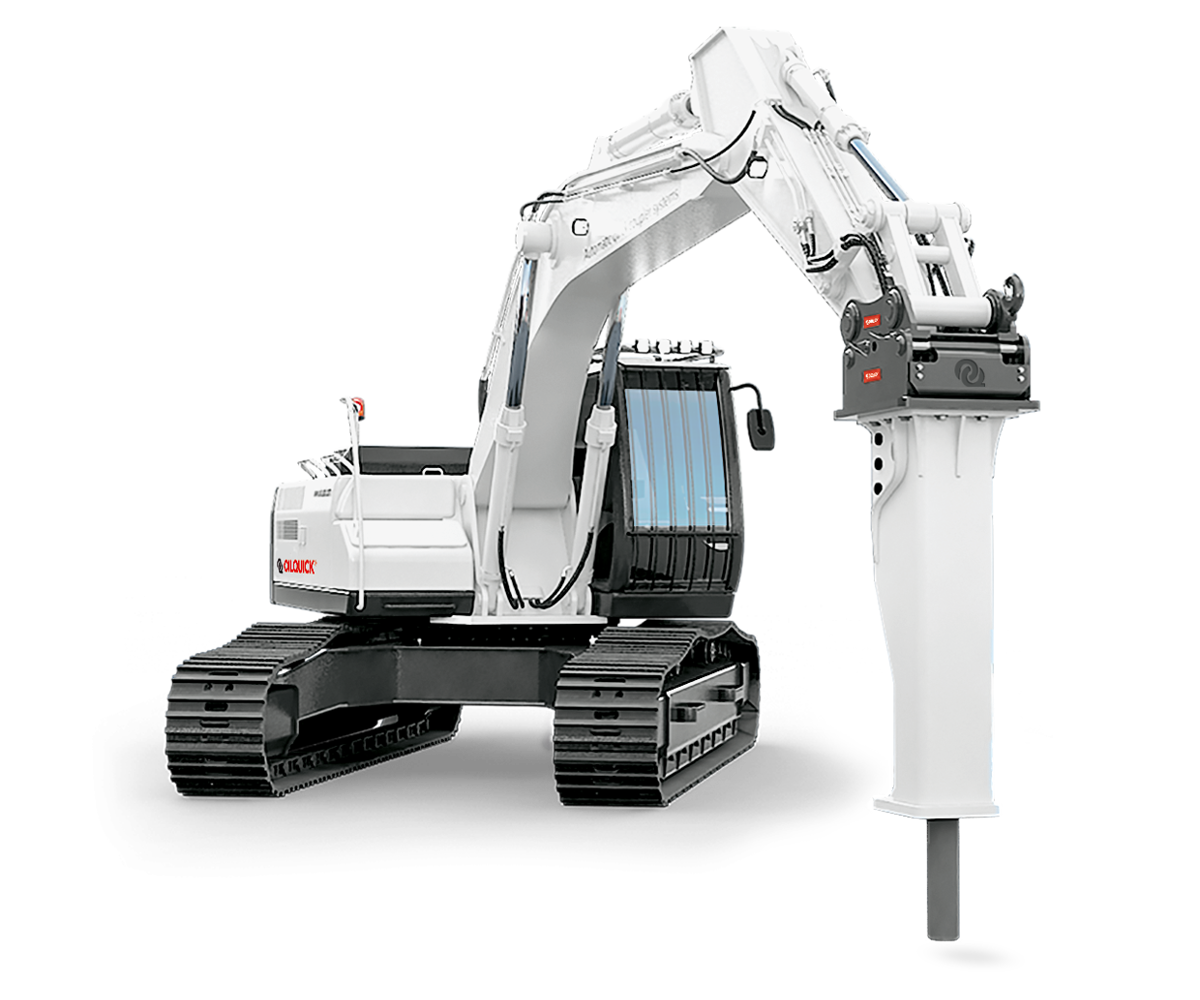

OQ 80 is a fully automatic quick coupler system, which suits all excavators from 28-44 t.
Why OQ?
- Change between various work tools within a few seconds!
- Increased versatility and efficiency.
- No oil spills, saving both money and the environment.
- No messy hose couplings.
- Saves the knees and back of the operator when unnecessary jumps in and out of the cab is avoided.
- The OilQuick system makes your excavator and your company more flexible, competitive, and cost effective.
- OilQuick is an advanced quick coupler system for excavators and can be supplied in various models for machines from 1 to 120 tons.
- Can distribute: Hydraulic oil, grease, water and electricity.
OQ 80
Imperial
Metric
| Max. output torque | 700 kNm |
| Bucket radius | 1850 mm |
| Force at bucket edge | 380 kN |
| Width | 590 mm |
| Weight (approx) | 320 kg |
| Quick coupler with 2 parallel hydraulic cylinders | |
| Max. working pressure (MPa) | 35 MPa |
| Load-bearing hose break valves | Yes |
| Pressure control valves | Yes |
| Leak-free quick couplers made of steel, OilQuick | |||
| Coupling sizes | 1/2" | 3/4" | 1" |
| Oil flow at 0.3 MPa pressure loss | 70 L/min | 140 L/min | 250 L/min |
| Max. continuous working pressure (MPa) | 35 MPa | 35 MPa | 35 MPa |
| No. of couplings | 2 | 2 | 2 |
| Max. output torque | 516,290 Lb-ft |
| Bucket radius | 72.8" |
| Force at bucket edge | 85,430 Lb-ft |
| Width | 23.2" |
| Weight (approx) | 710 Lbs |
| Quick coupler with 2 parallel hydraulic cylinders | |
| Max. working pressure (MPa) | 5,080 Psi |
| Load-bearing hose break valves | Yes |
| Pressure control valves | Yes |
| Leak-free quick couplers made of steel, OilQuick | |||
| Coupling sizes | 1/2" | 3/4" | 1" |
| Oil flow at 0.3 MPa pressure loss | 18 gal/min | 37 gal/min | 66 gal/min |
| Max. continuous working pressure (MPa) | 5,080 Psi | 5,080 Psi | 5,080 Psi |
| No. of couplings | 2 | 2 | 2 |
OQ 80
Imperial
Metric
| Attachment frame for mechanical tools without coupling ramp | |
| Inside width | 590 mm |
| Pin distance | 670 mm |
| Pin diameter | 80 mm |
| Weight (approx) | 144 kg |
| Attachment frame for hydraulic tools with coupling ramp | |
| Inside width | 590 mm |
| Pin distance | 670 mm |
| Pin diameter | 80 mm |
| Weight (approx) | 176 kg |
| Hydraulic tool adapter plate with coupling ramp | |
| Inside width | 590 mm |
| Pin distance | 670 mm |
| Pin diameter | 80 mm |
| Weight (approx) | 435 kg |
| Hydraulic tool special adapter with coupling ramp | |
| Inside width | 590 mm |
| Pin distance | 670 mm |
| Pin diameter | 80 mm |
| Weight (approx) | See identification plate on adapter |
| Attachment frame for mechanical tools without coupling ramp | |
| Inside width | 23.2" |
| Pin distance | 26.4 |
| Pin diameter | 3.1" |
| Weight (approx) | 320 Lbs |
| Attachment frame for hydraulic tools with coupling ramp | |
| Inside width | 23.2" |
| Pin distance | 26.4" |
| Pin diameter | 3.1" |
| Weight (approx) | 390 Lbs |
| Hydraulic tool adapter plate with coupling ramp | |
| Inside width | 23.2" |
| Pin distance | 26.4" |
| Pin diameter | 3.1" |
| Weight (approx) | 960 Lbs |
| Hydraulic tool special adapter with coupling ramp | |
| Inside width | 23.2" |
| Pin distance | 26.4" |
| Pin diameter | 3.1" |
| Weight (approx) | See identification plate on adapter |
