OQL 410

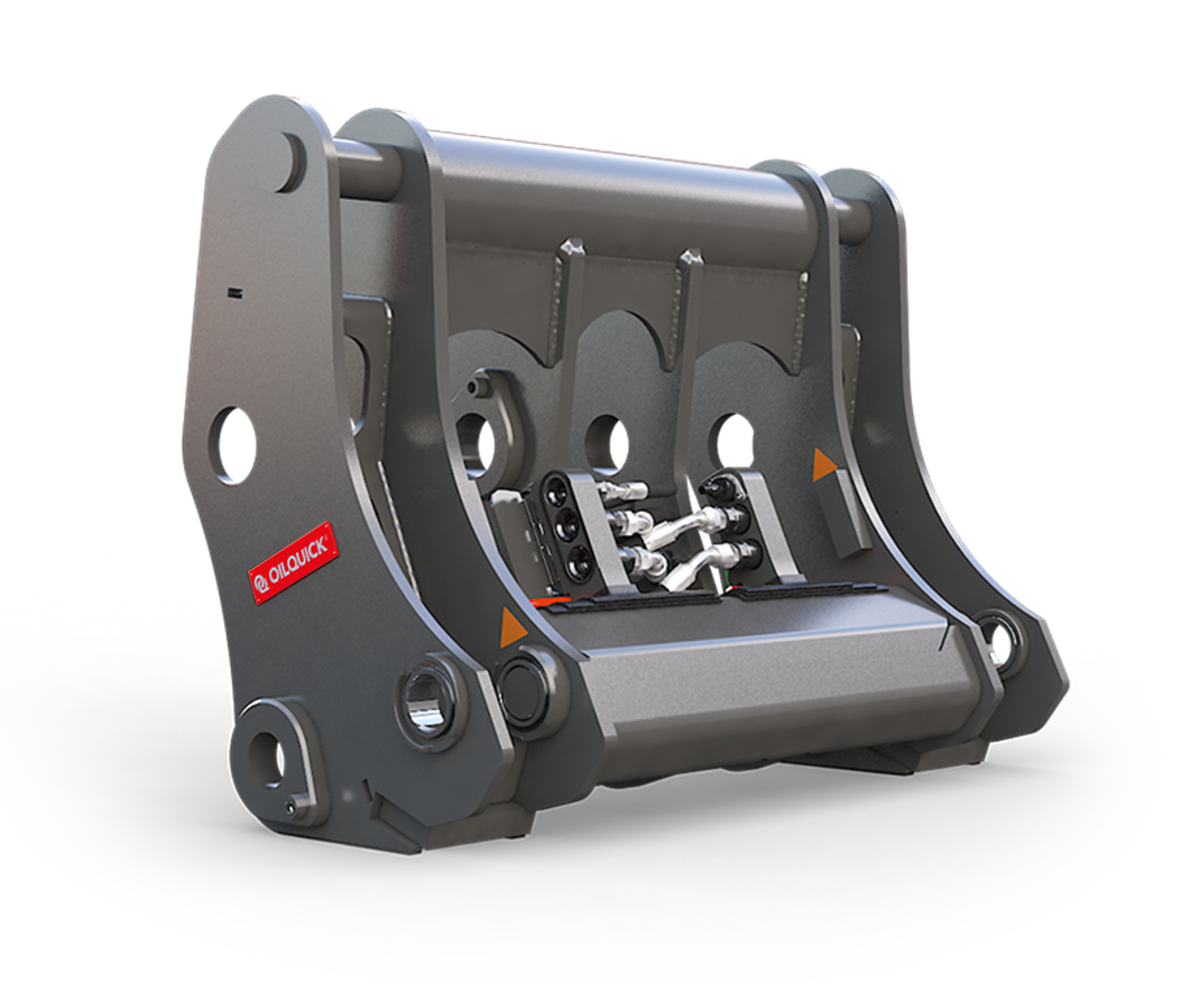

OilQuick automatic quick coupler system, type OQL410, is suitable for big wheel loaders in the weight class of 22-36 t.

Imperial

Metric

Wheel Loader Specs
Model Weight Width Electrical Coupling 10-Pole Optional Carrier Weight Suitable for Volvo Model
OQL 410 1389 lbs 630 kg 52 1321 mm Left hand side 22 - 36 t L150 - L220
The quick coupler has one hydraulic cylinder
Max. working pressure 5,080 Psi 35 MPa
Load holding valve/check-valve Yes
Piston/Piston rod, diameter 2.4" / 1.6" 60/40 mm
Stroke per cylinder side 5.3" 135 mm
Total closing force at 10 MPa 4,000 Psi 28,3 kN
Max. continuous working pressure 5,080 Psi 35 MPa
The non-spill steel couplings are of OilQuick type
Coupling sizes 1/2" 3/4"
Oil flow at 0,03 MPa pressure loss 18 gal/min 70 L/min 37 gal/min 140 L/min
Max. continuous working pressure (MPa) 5,080 Psi 35 MPa 5,080 Psi 35 MPa
No. of couplings 2 4
Possible to use 1/2” electric coupling Yes
Size and location of quick couplings
Coupling 1,4 1/2"
Coupling 2,3,5,6 3/4"

Imperial

Metric

Oql410 2
Adapter data OQL 410
Attachment fram inner measurement (A) 39.4" 1000 mm
Height (B) 30.8" 782 mm
Hooks diameter (C) 3.2" 82 mm
Locking plungers diameter (D) 3" 75 mm
