OQC 65

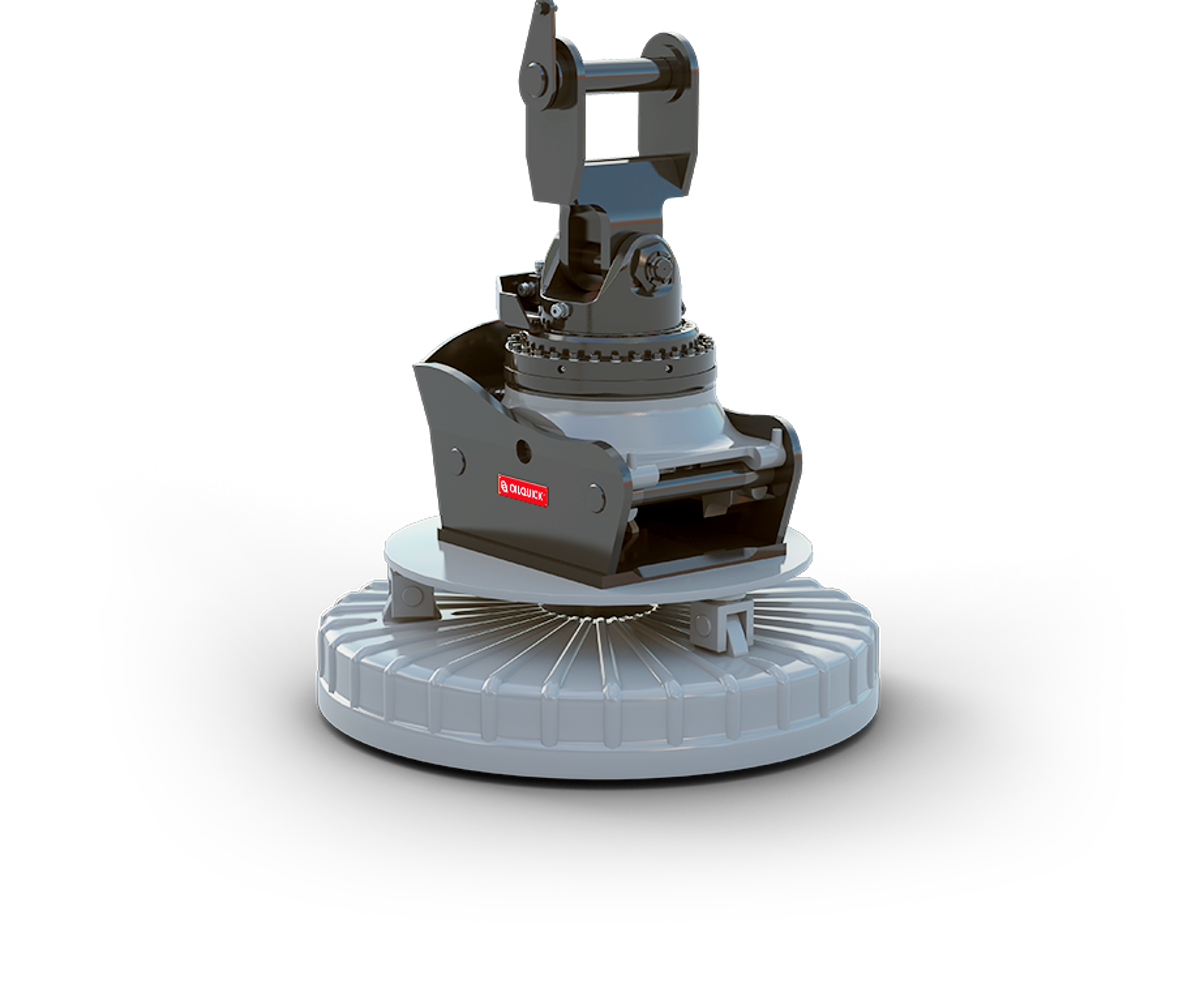

The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on loading cranes and other handling equipment with lifting capacity up to 25 metric tonnes.
OQC65
Imperial
Metric
| Model | Rotator | Weight | Max. lift capacity | |
| Coupler | Rotator | |||
| OC65-I20 | XR400 | 1267 Lbs 575 kg | 20 t | |
| OC65-R20 | RT504 | 1167 Lbs 529 kg | 715 Lbs 324 kg | 20 t |
| OQ65-R25 | RT1004 | 1466 Lbs 665 kg | 967 Lbs 439 kg | 25 t |
| Model | Max. no. of couplings | Electrical couplings | Max. operating pressure | ||||
| 1" | 3/4" | 1/2" | 3/8" | High power 92A/100A | Control power 24 V | ||
| OQ65-I20 | - | 3 | 2 | - | Option - 92A | Option | 5000 Psi 345 bar |
| OQ65-R20 | - | 3 | 2 | - | Option - 100A | Option | 5000 Psi 345 bar |
| OQ65-R25 | - | 3 | 2 | - | Option - 100A | Option | 5000 Psi 345 bar |
Imperial
Metric
| Model | A | B | C | D | E |
| OQ65-I20 | 21" 531 mm | 17.4" 442 mm | 28.3" 719 mm | 28.6" 726 mm | 20.2" 513 mm |
| OQ65-R20 | 21" 531 mm | 17.4" 442 mm | 28.3" 719 mm | 44.4" 1128 mm | 36" 914 mm |
| OQ65-R25 | 21" 531 mm | 17.4" 442 mm | 28.3" 719 mm | 47.1" 1196 mm | 38.8" 986 mm |
