OQC 90

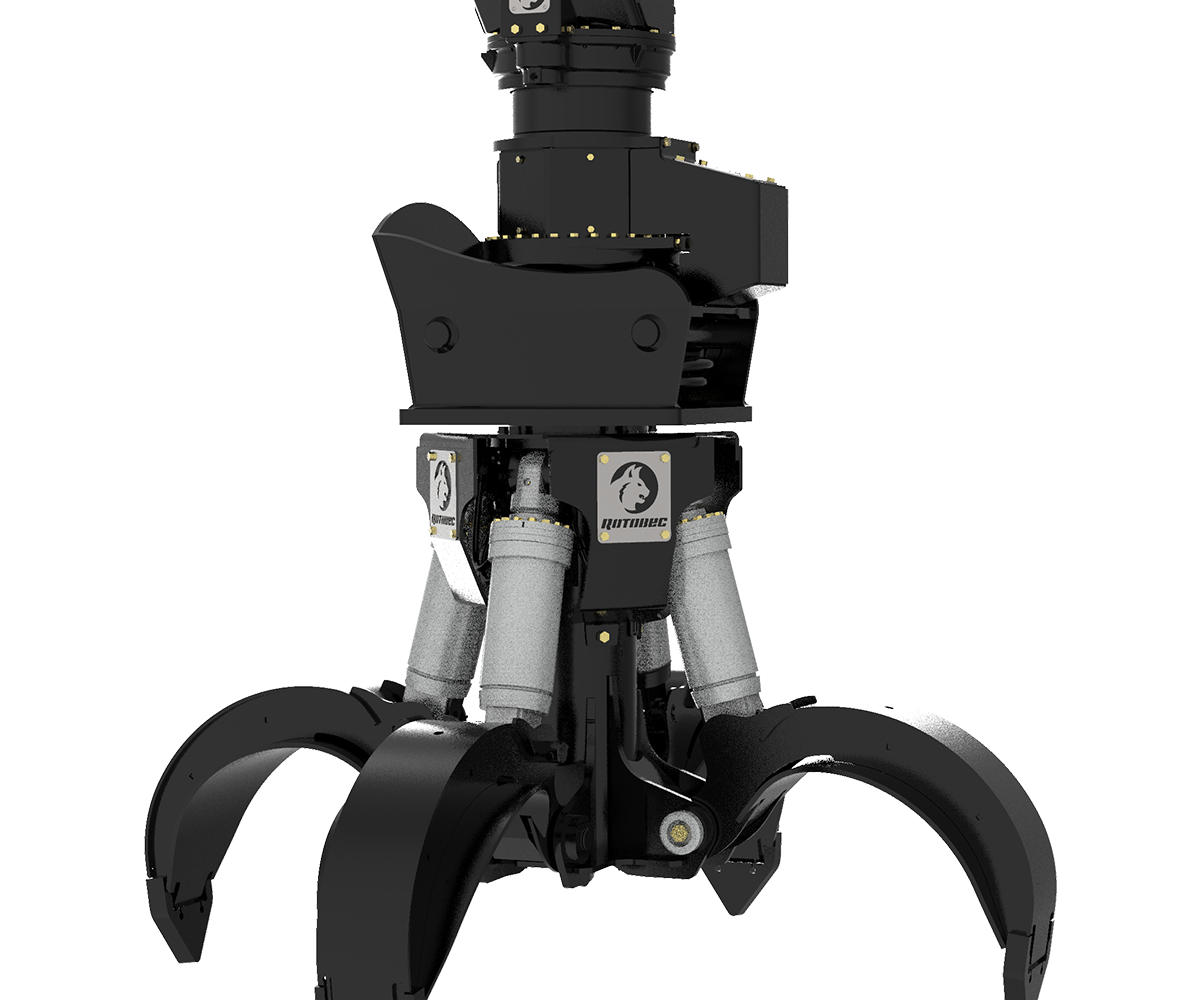

The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on loading cranes and other handling equipment with lifting capacity up to 68 tons.
OQC 90
Imperial
Metric
| Rotator | Weight | Max. lift capacity | ||
| Coupler | Rotor | Adapter | ||
| RT1204 | 1480 Lbs 673 kg | 1580 Lbs 717 kg | 2110 Lbs 955 kg | 54 t |
| RT1504 | 1480 Lbs 673 kg | 1920 Lbs 873 kg | 2110 Lbs 955 kg | 68 t |
| Max. no. of couplings | Electrical couplings | Max. operating pressure | ||
| 1" | High power 65A | Control power 24 V, 10 Polig | ||
| 4 | Option | Option | 5000 Psi 345 bar | |
OQC 90
Imperial
Metric
| Rotator | RT1204 | RT1504 |
| A | 30" 751 mm | 30" 751 mm |
| B | 40" 1022 mm | 40" 1022 mm |
| C | 30" 750 mm | 30" 750 mm |
| D | 48" 1214 mm | 48" 1214 mm |
| E | 58" 1485 mm | 60" 1516 mm |
| F | 52" 1312 mm | 53" 1343 mm |
| G | 32" 818 mm | 32" 818 mm |
