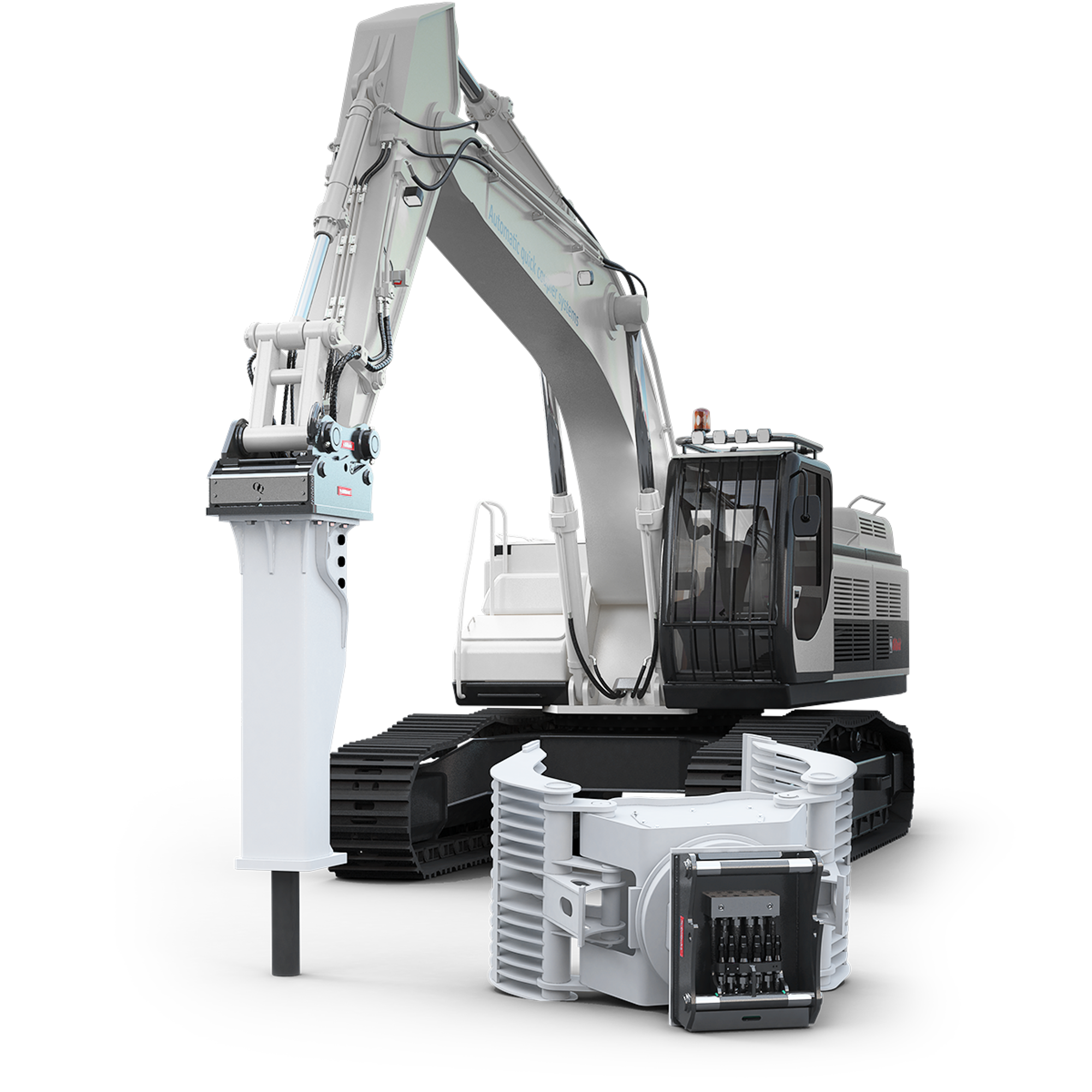

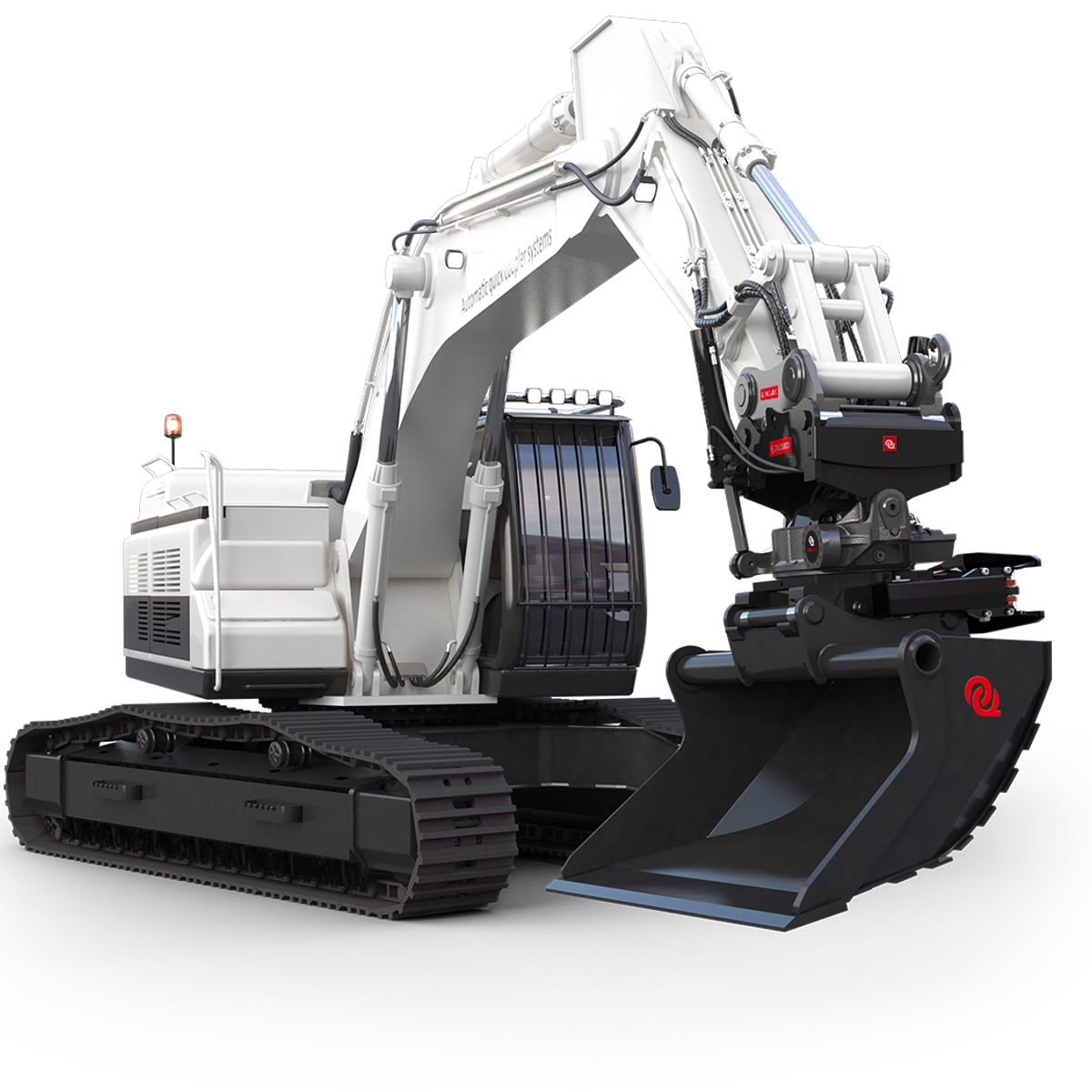

Automatic quick coupler system for excavators
DOUBLE PRESSURE VALVES-for a secure connection even if the hose breaks.
READING-for automatic tool recognition (optional)
H-CYLINDER WITH QUICK COUPLINGSConnect hydraulic circuits with a cylinder movement and lock the quick-change mechanism.

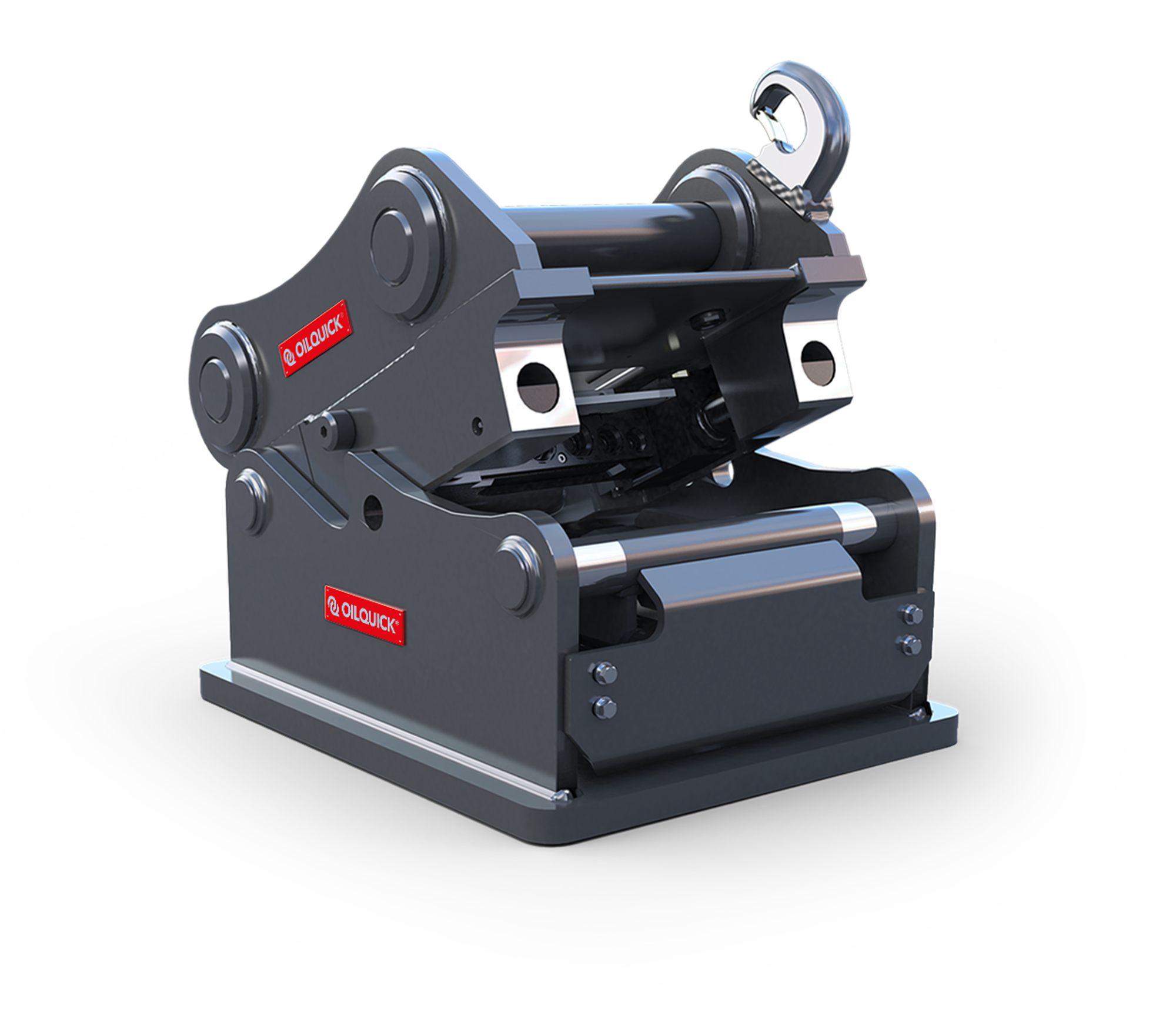

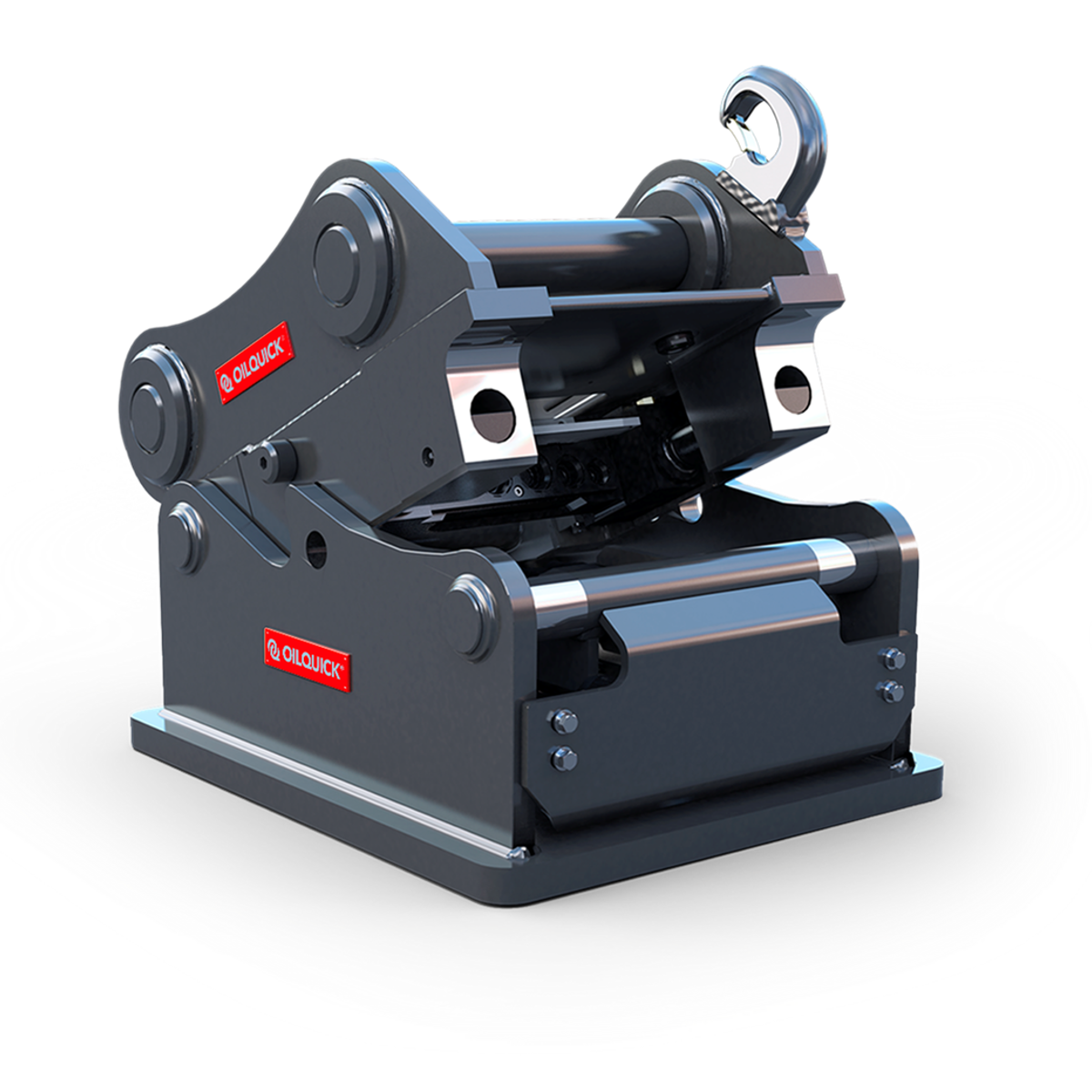

ROBUST QUICK COUPLER- made of high-grade steel and with a good fit.

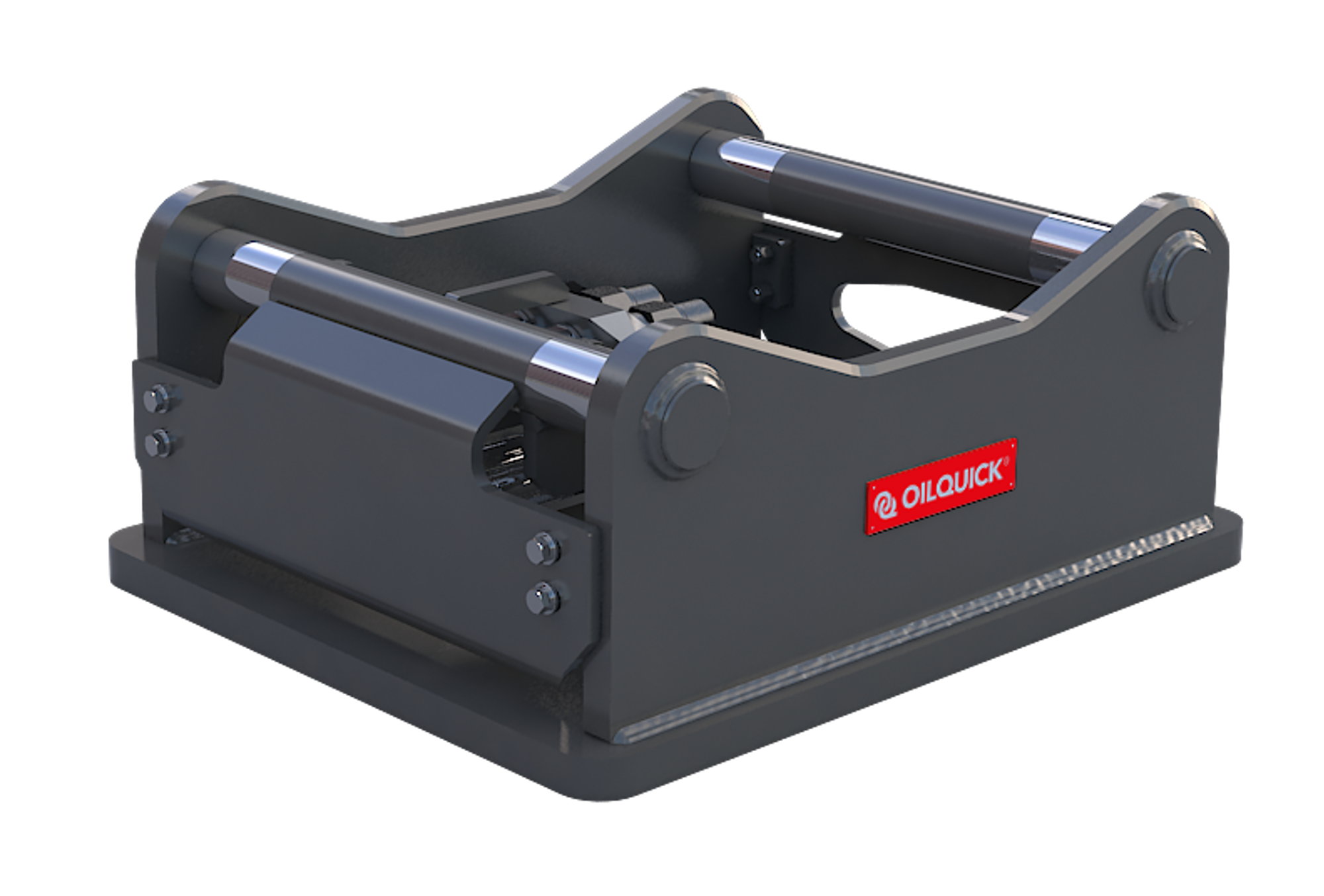

DURABLE ATTACHMENT ADAPTER- this ensures connection with no play for minimum wear and long service life.

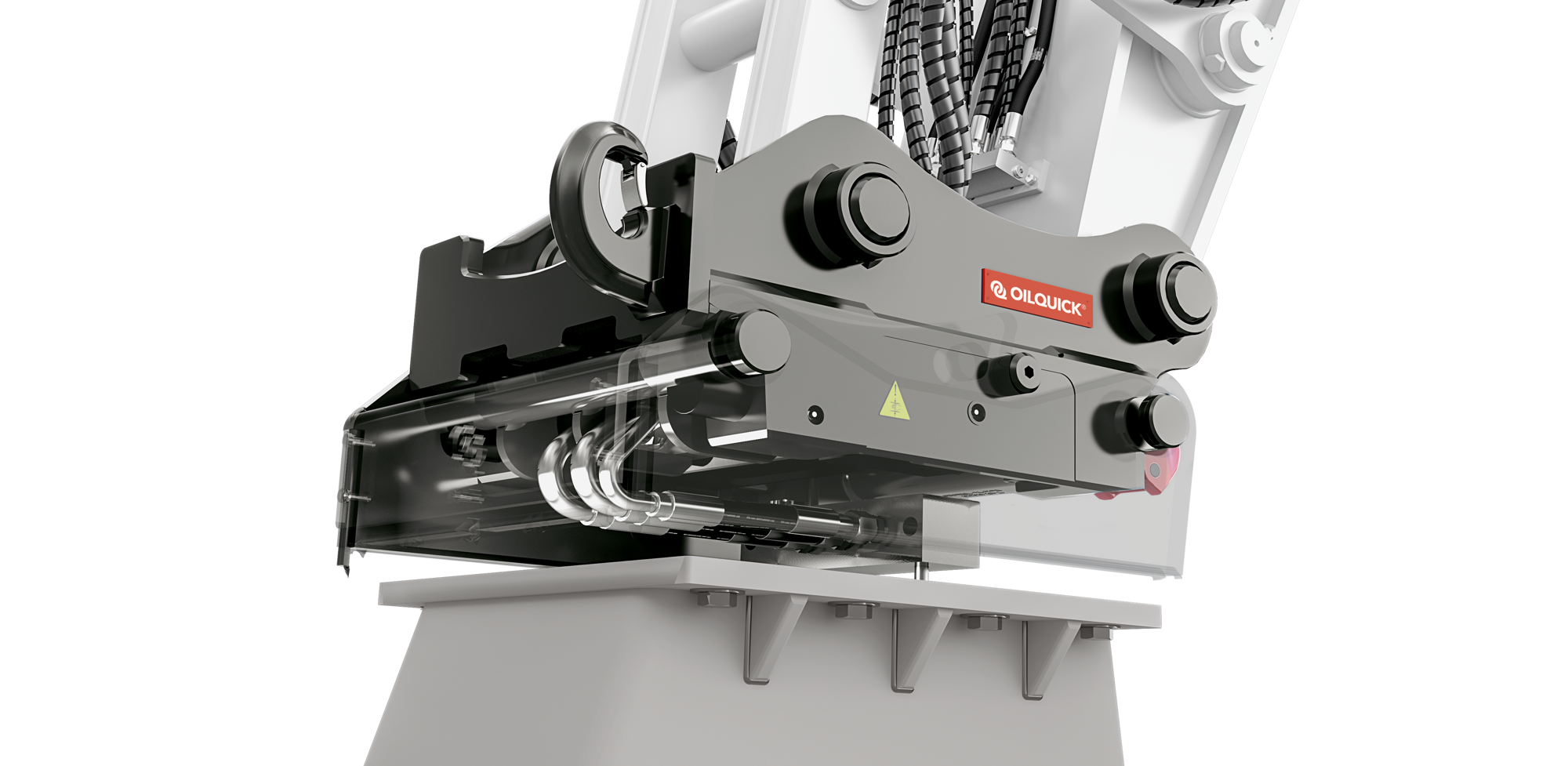

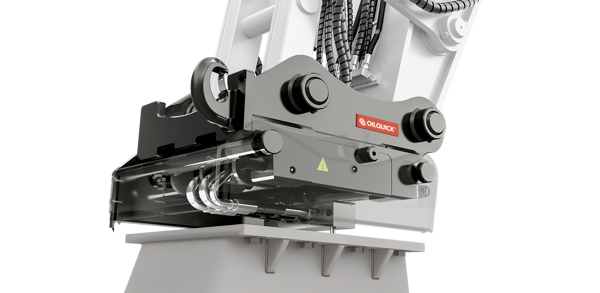

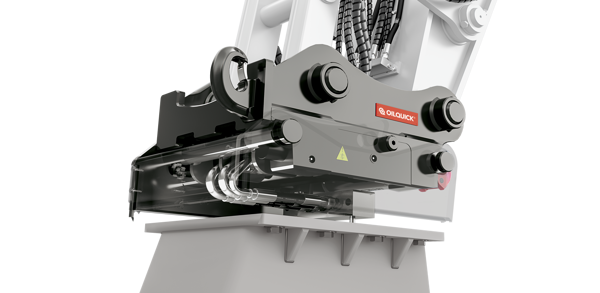

The OilQuick quick coupler locks the quick coupler to the attachment bracket, at the same time connecting the hydraulic hose couplings. All of this is done in one motion.

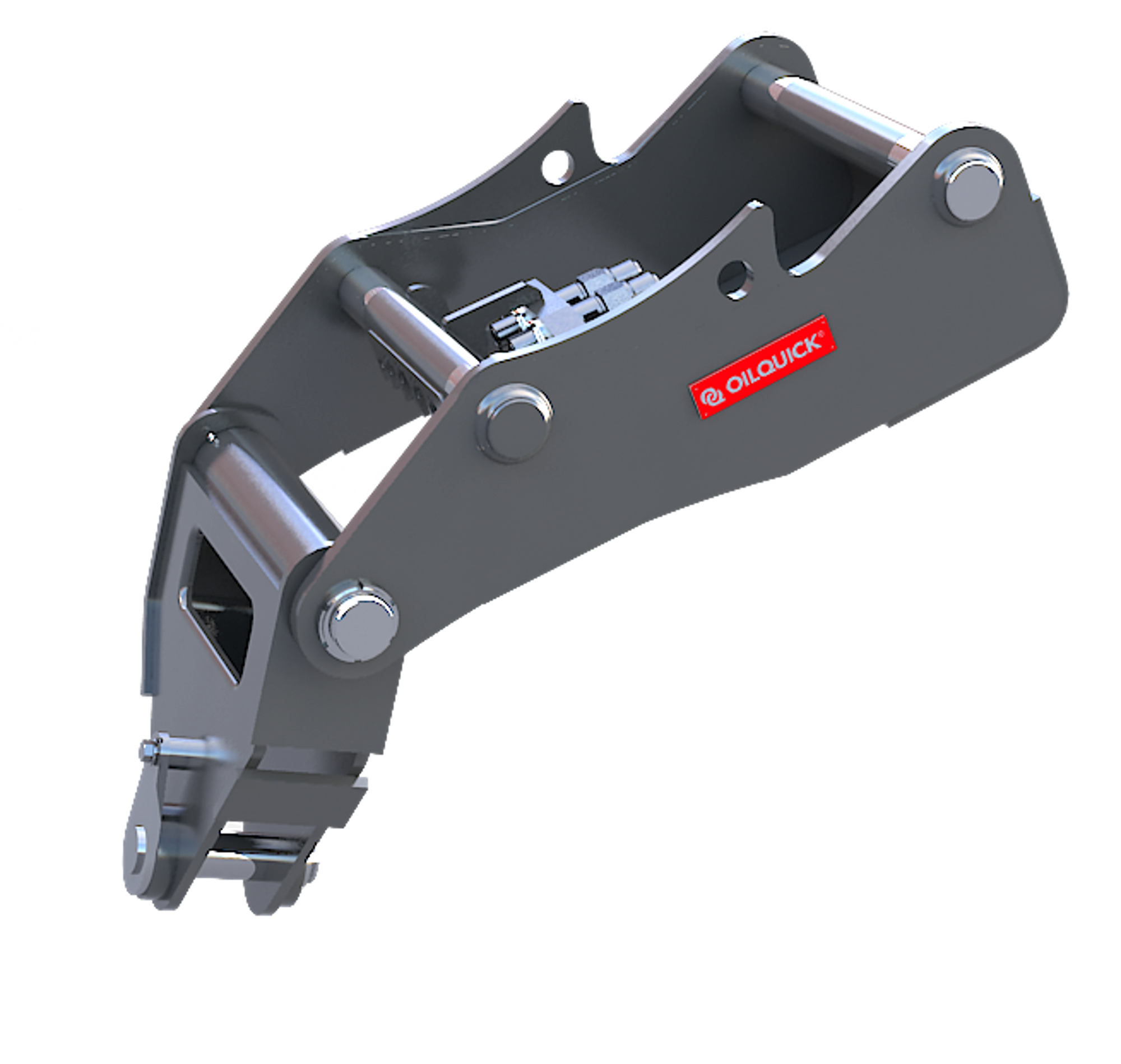

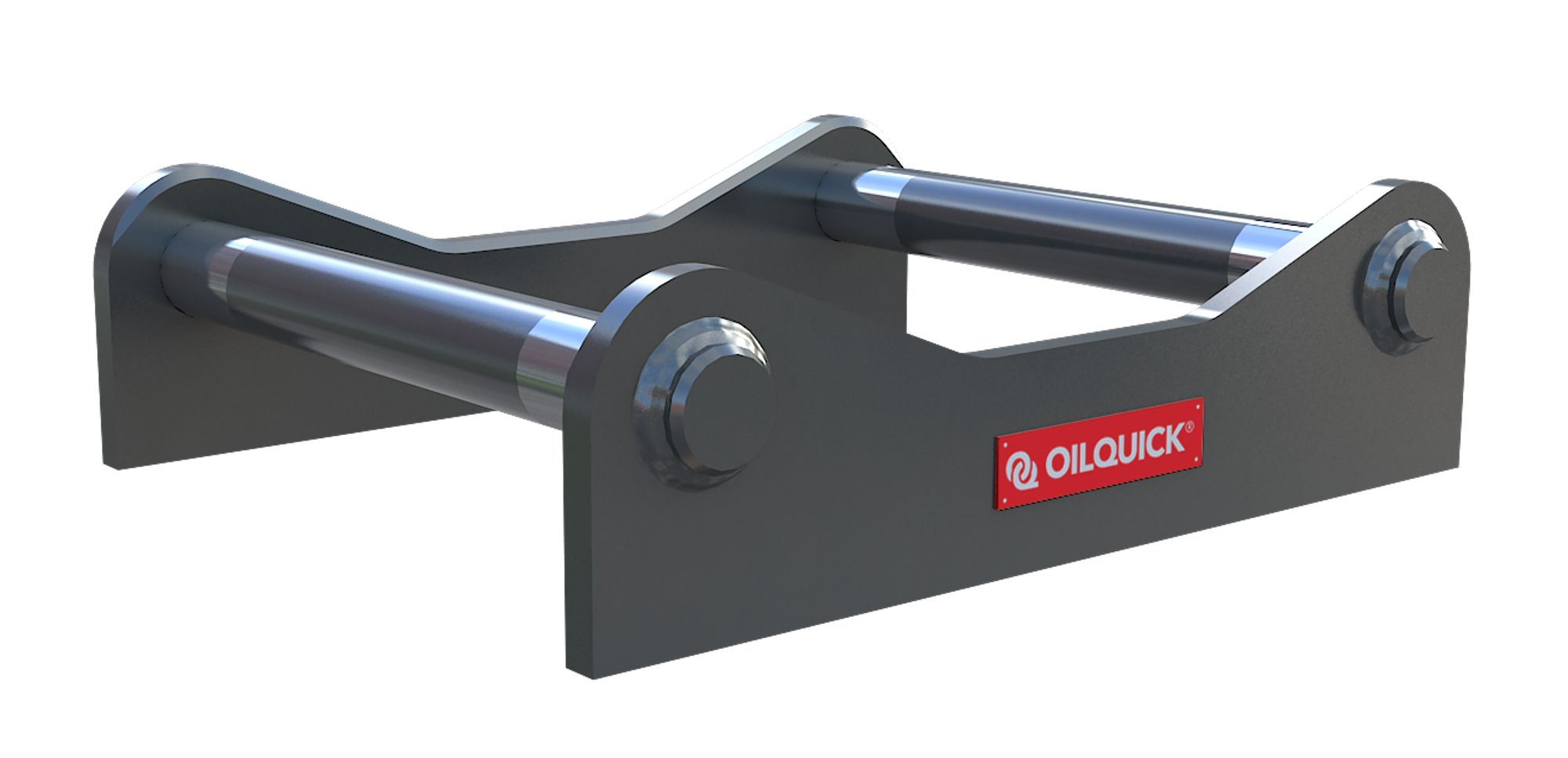

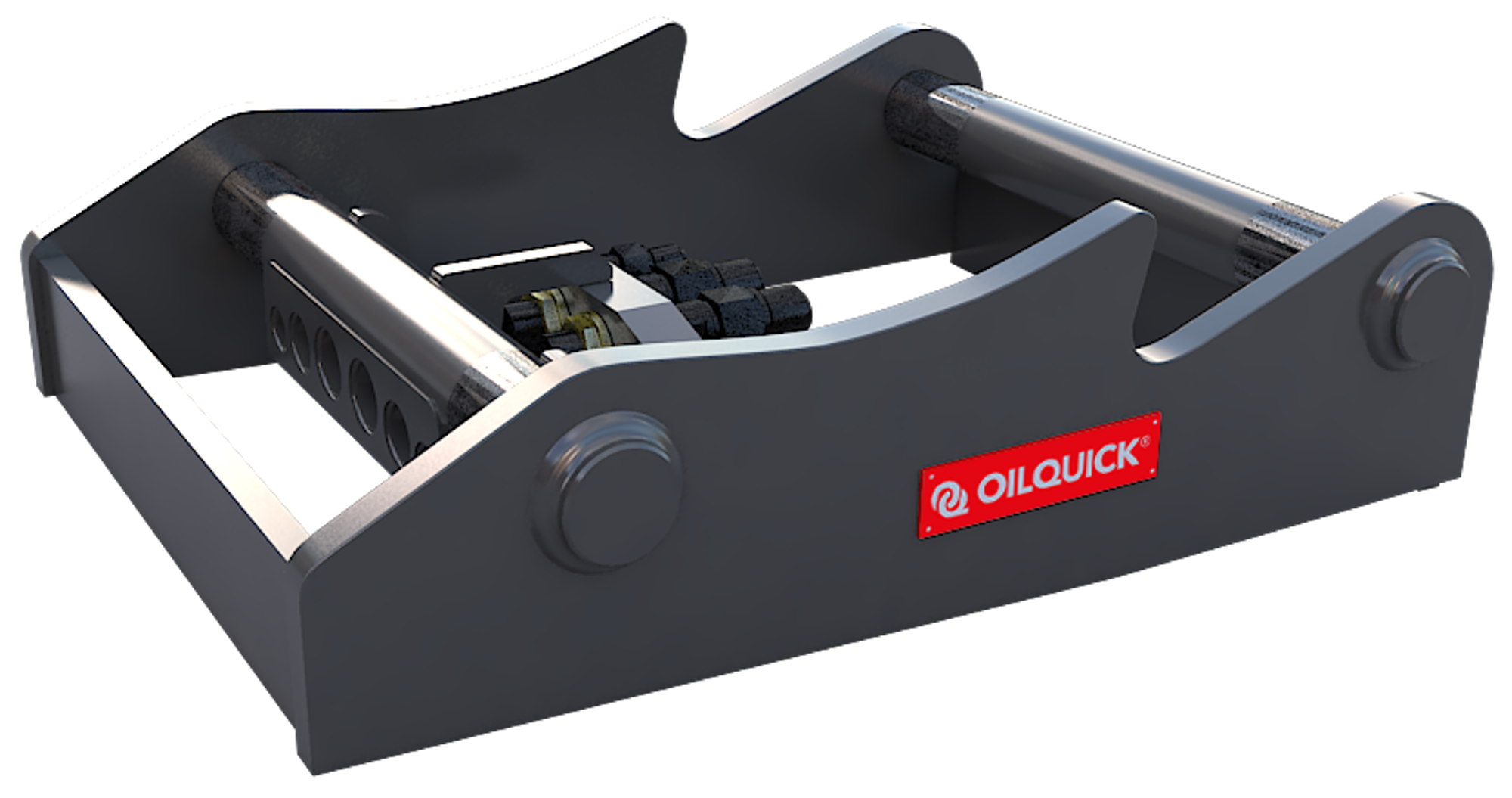

Adapters for all attachments
Small excavator or heavy equipment? Hydraulic, electric or mechanical attachment? No two machines are alike, but the OilQuick-system always works. And the result: You work more comfortable, faster and safer. No matter the equipment you will always find the correct adapter in our range.
Supplements & options
High-power connection for magnet
The OilQuick quick coupler system can also be fitted with a high-power connection, enabling a magnet for example to be attached quickly for material handling work. This high-power coupling has a capacity of up to 63 A.

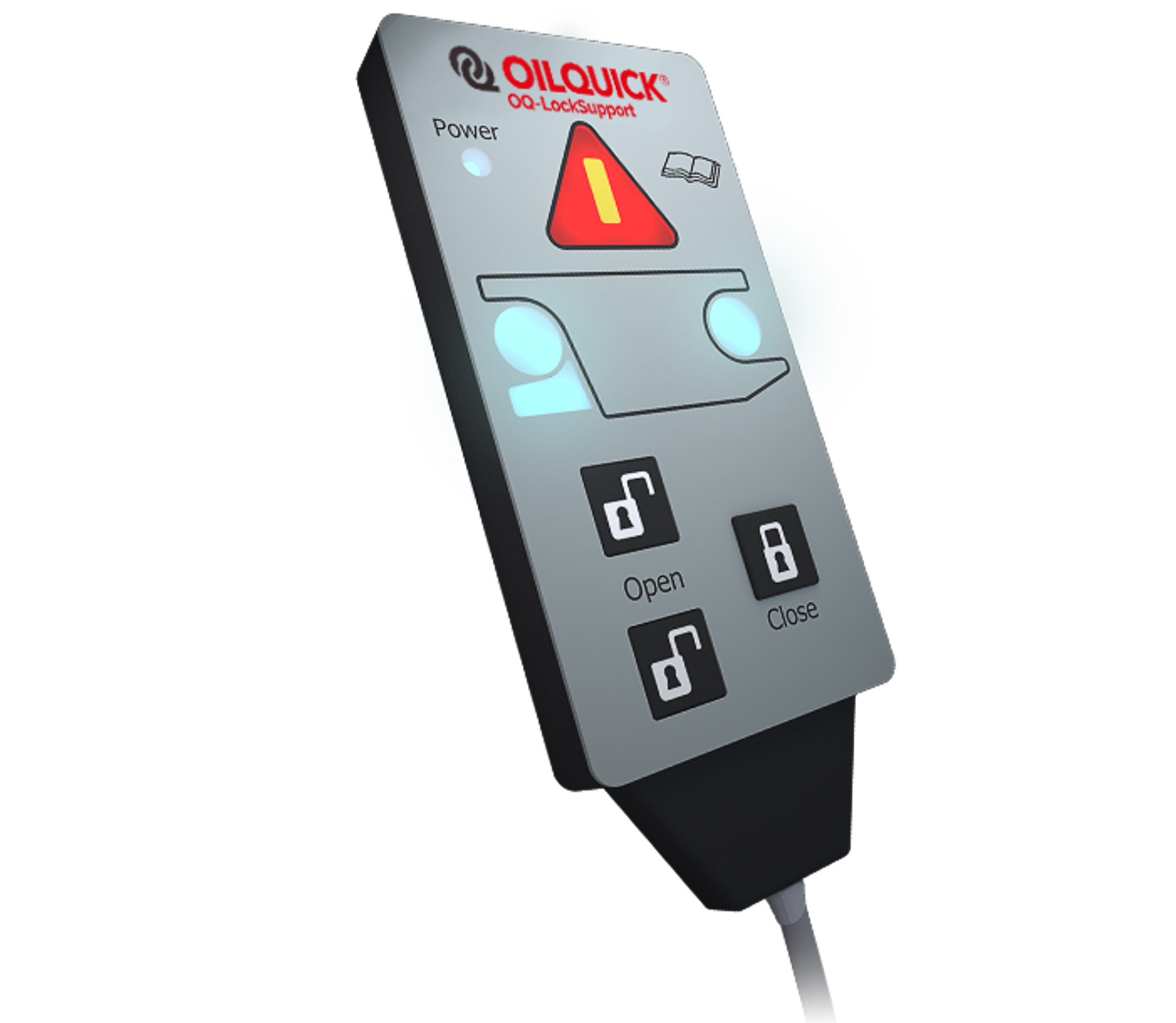

For a backlash-free attachment and optimal safety the OilQuick-quick coupler system requires a hydraulic locking with full system pressure, free return to the tank and one lock switch in the cab with dual controls.
In many cases, the excavator comes factory-equipped with a CE approved locking hydraulic systems that satisfy our requirements. But in cases where this may not apply, OilQuick offers an optimal hydraulics lock solution. OilQuick hydraulic lock kit is available as an option.
OilQuick quick coupler system can be equipped with electrical connections for control current of valves and other things. There are two types of electrical connections; horizontal mounted couplers and alternatively vertical mounted couplers.
A connector developed to handle lubrication of attachments in the best possible way.
The unique aspect of the connector is that it has an integrated return for the grease, so that when you disconnect a tiltrotator and connect a bucket, the grease goes back to the return so that the overflow valve is not activated. An option for all sizes of coupler.
What does becoming a
Clean System partner mean?
First off: Joining Clean System does not leave you with a choice between the various system providers. As a Clean System partner, you are still completely free to put together your brand portfolio as you wish.
Clean System is an interest group of OilQuick retail partners with a particularly high standard of safety, reliability and sustainability.
Read more about it
