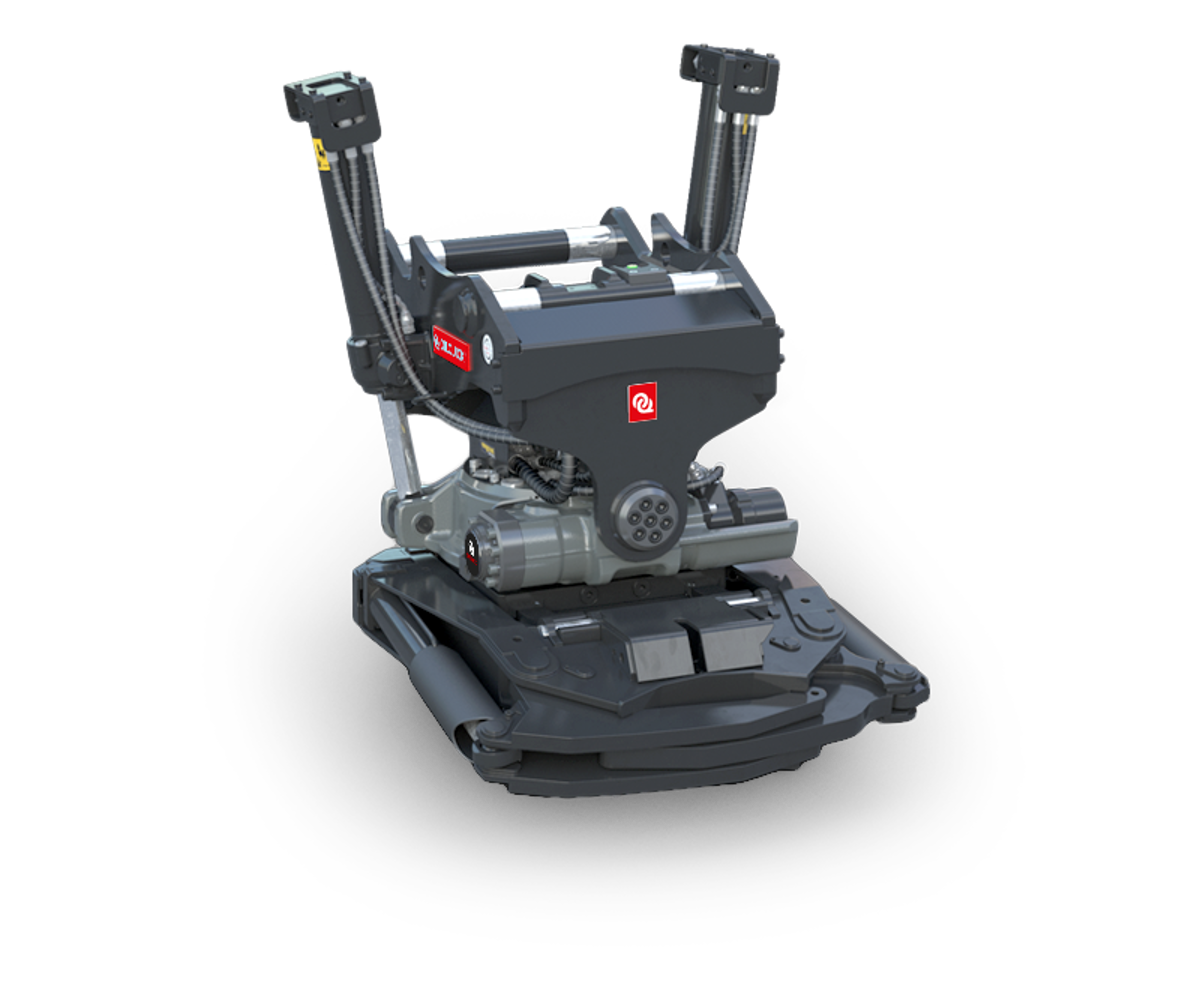

OQTR-E26
For medium-sized excavators and backhoe loaders in weight class 19-26 t.
OQT-E26
| Min/max machine weight | 19 000 - 26 000 kg |
| Weight | From 840 kg |
| Max. breaking torque | 270 kNm |
| Max. bucket width | 2000 mm |
| Max. hydraulic pressure | 22 MPa |
| Rec. hydraulic flow DC2 | 120 L/min |
| Rec. hydraulic flow tilt/rotation OQCS-4 | 70/70 L/min |
| Max. return line pressure | 2,5 MPa |
| Max. hydraulic flow extra/high flow | 100 L/min |
| Swivel channel extra function | 4 |
| Swivel channel locking function | 2 |
| Rotation | Unlimited |
| Tilt angle | 2x45° |
| Tilting speed at hydraulic flow | 5/43 s/L/min |
| Rotation speed for one rotation at hydraulic flow | 7/70 s/L/min |
| Standard dimension extra outlet | 1” |
| No. of lubrication points | 5, standard |
| No. of lubrication points through OQ-function | 4, option |
| Rotation sensor and ePS | Yes, standard |
| Tilt cylinder, double acting with load holding valve | Yes, standard |
| Control system | |
| DC2 | ✓ |
| DC2 wheel control | Option |
| DC2 track control | Option |
| OQCS-4 | ✓ |
| Quick coupler | OQ65 | OQ70 | OQ70/55 |
| Weight (kg) | - | From 840 kg | From 850 kg |
| Total length mm (A) | 905 | 986 | 1200 |
| Height mm (B) | 660 | 698 | 670 |
| Width mm (C) | 900 | 894 | 895 |
| Total height mm (D) | 1215 | 1237 | 1240 |
| Coupler width mm (E) | 441 | 450 | 551 |
| C-C Axle distance mm (F) | - | 600 | - |
| Inner dimension mm (G) | - | 451 | - |
